Industry Background and Market Demand

Imaging systems have become integral to a wide range of industries, extending far beyond traditional photography. Today, cameras are embedded in industrial automation, Automotive safety systems, medical diagnostics, security infrastructure, aerospace platforms, and consumer electronics. As camera deployment expands into harsher and more demanding environments, the role of the Camera housing has shifted from a protective shell to a critical structural and functional component of the overall system.

Market demand is driven by several converging trends. Miniaturization of image sensors requires tighter mechanical tolerances, while higher-resolution optics increase sensitivity to vibration, misalignment, and thermal distortion. At the same time, cameras are increasingly expected to operate reliably under extreme temperatures, moisture, dust, chemicals, or mechanical shock. These requirements have elevated housing design to a core engineering discipline rather than a secondary enclosure task.

For B2B manufacturers and system integrators, camera housings must balance protection, thermal control, electromagnetic compatibility, and manufacturability, all while supporting scalable production and long service life.

Core Concepts and Key Technologies

Functional Role of a Camera Housing

A camera housing is a structural enclosure that protects internal imaging components—such as sensors, lenses, PCBs, and connectors—while maintaining precise alignment and environmental isolation. Its performance directly influences image quality, reliability, and system safety.

Beyond protection, modern housings often serve as mounting interfaces, thermal pathways, and shielding elements. In many applications, the housing is also responsible for maintaining optical axis stability under mechanical and thermal stress.

Key Engineering Principles

Several technical principles underpin effective housing design:

• Mechanical rigidity to prevent deformation affecting focus or field of view

• Environmental sealing against dust, moisture, and contaminants

• Thermal management to dissipate heat from sensors and electronics

• Electromagnetic shielding to reduce interference in sensitive imaging systems

Balancing these principles requires close coordination between mechanical, thermal, and electrical engineering disciplines.

Product Structure, Performance, Materials, and Manufacturing Processes

Structural Architecture

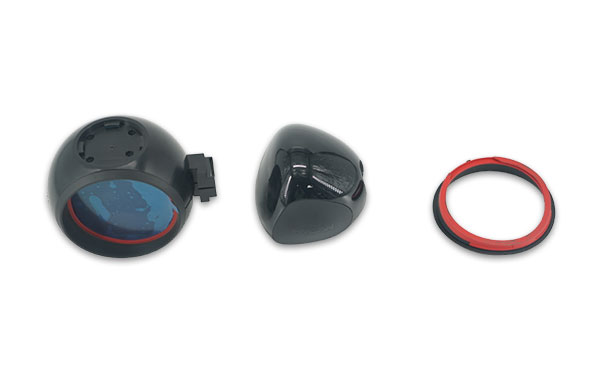

A typical camera housing assembly includes:

• A main enclosure body providing structural support

• A front interface or bezel for lens mounting and optical alignment

• Sealing elements such as O-rings or gaskets

• Cable or connector interfaces with strain relief

• Mounting features for brackets, tripods, or system integration

In industrial or automotive applications, housings may also include shock-absorbing features or vibration-isolation interfaces.

Performance Characteristics

Key performance metrics include ingress protection rating, impact resistance, dimensional stability, and thermal conductivity. For precision imaging systems, maintaining consistent internal geometry over time is critical to preserving calibration.

In outdoor or mobile applications, resistance to UV exposure, corrosion, and repeated thermal cycling is equally important.

Material Selection

Material choice is closely tied to operating environment and production volume. Common materials include:

• Aluminum alloys, offering high strength, good thermal conductivity, and EMI shielding

• Engineering plastics such as polycarbonate or glass-filled nylon, valued for weight reduction and design flexibility

• Stainless steel, used in corrosive or hygienic environments

• Magnesium alloys, selected for lightweight, high-stiffness applications

Surface treatments such as anodizing, powder coating, or chemical passivation are often applied to enhance durability and environmental resistance.

Manufacturing Processes

Manufacturing methods vary by material and complexity. CNC machining is commonly used for low- to mid-volume aluminum housings requiring tight tolerances. Die casting supports higher volumes with complex geometries, while Injection molding is preferred for plastic housings in consumer and industrial electronics.

Post-processing steps may include sealing installation, surface finishing, and dimensional inspection. For high-reliability applications, housings are often assembled and tested in controlled environments to prevent contamination.

Key Factors Affecting Quality and Performance

Several factors strongly influence housing effectiveness:

• Dimensional tolerance control, affecting optical alignment

• Seal integrity, determining environmental protection

• Thermal interface design, impacting heat dissipation

• Surface finish quality, influencing corrosion resistance

• Assembly consistency, ensuring repeatable performance across batches

Failure to manage these factors can lead to image distortion, premature component failure, or costly field returns.

Supply Chain and Supplier Selection Criteria

For OEMs and system integrators, selecting the right housing supplier is a strategic decision. Evaluation criteria typically include:

• Experience with precision enclosures or imaging-related components

• Capability in both design-for-manufacturing and prototyping

• Material traceability and compliance with industry standards

• In-house testing for environmental and mechanical performance

• Production scalability and long-term supply stability

Early supplier involvement is often beneficial for optimizing cost, lead time, and performance.

Common Challenges and Industry Pain Points

Despite mature manufacturing technologies, camera housing development presents recurring challenges:

• Thermal expansion mismatch between housing and optical components

• Condensation management in sealed enclosures

• Weight constraints in mobile or airborne platforms

• Customization complexity for different camera modules

Addressing these issues requires holistic system design rather than isolated enclosure optimization.

Application Scenarios and Industry Use Cases

Camera housings are used across a wide range of industries, each with distinct requirements:

• Industrial vision systems, where rigidity and vibration resistance are critical

• Automotive cameras, requiring compact design and resistance to temperature extremes

• Security and surveillance, emphasizing weatherproofing and long-term reliability

• Medical imaging devices, demanding hygienic materials and precise alignment

• Aerospace and defense, where weight, shock resistance, and EMI control are tightly regulated

In each case, the housing directly contributes to system performance and operational safety.

Current Trends and Future Development Directions

Several trends are shaping the evolution of camera housing design:

• Integration of thermal management features, such as heat sinks or vapor chambers

• Lightweight material adoption, supporting mobility and energy efficiency

• Modular housing platforms, enabling faster customization

• Improved sealing technologies, enhancing durability in harsh environments

• Sustainability considerations, including recyclable materials and longer service life

As imaging systems continue to proliferate, housings are expected to become more functionally integrated and application-specific.

Frequently Asked Questions

How does housing material affect image quality?
Material stiffness and thermal behavior influence optical alignment, which can affect focus stability and calibration accuracy.

Are plastic housings suitable for industrial use?
Yes, when properly designed, reinforced plastics can meet many industrial requirements while reducing weight and cost.

What is the most common failure mode?
Seal degradation and thermal stress-related deformation are more common than structural fracture in well-designed housings.

Conclusion

The camera housing plays a central role in ensuring the reliability, accuracy, and longevity of modern imaging systems. Far from being a passive enclosure, it integrates mechanical protection, thermal control, and system interfaces into a single engineered component. For manufacturers and integrators operating in demanding environments, a well-designed camera housing is essential to achieving consistent imaging performance and scalable production.
