Industry Background and Market Demand

Touch interfaces have become ubiquitous across industries, ranging from consumer electronics to industrial automation. With the proliferation of interactive displays in smartphones, tablets, Automotive dashboards, industrial machinery, and medical devices, the durability and longevity of touch surfaces have emerged as critical concerns. Scratch-resistant IMD (In-Mold Decoration) touch panels address these challenges by combining aesthetic appeal with mechanical resilience, offering superior protection against wear, abrasion, and environmental damage.

The demand for durable touch panels is particularly high in high-use environments such as automotive cabins, factory floors, public kiosks, and medical facilities. In these applications, surface scratches not only degrade visual quality but can compromise touch sensitivity and user experience. Manufacturers and system integrators therefore prioritize touch panels that maintain both performance and appearance over extended operational lifespans. Additionally, regulatory and safety requirements in industrial and medical contexts further elevate the importance of material integrity and surface durability.

Core Concepts and Key Technical Principles

In-Mold Decoration (IMD) Technology

IMD is a manufacturing process in which a decorative film or functional overlay is inserted into the injection mold and bonded with the substrate during molding. This approach allows the creation of a unified panel with integrated graphics, textures, and protective coatings. Unlike traditional post-mold surface treatments or external overlays, IMD forms a monolithic structure that improves resistance to scratches, delamination, and fading.

Touch Panel Functionality

Touch panels operate based on capacitive, resistive, or optical sensing principles. The outer layer must maintain uniform conductivity, transparency, and smoothness to ensure accurate detection of user input. Integrating IMD technology ensures that the protective surface does not interfere with these functions while simultaneously providing mechanical resilience.

Scratch Resistance Principles

Scratch resistance in IMD touch panels is primarily achieved through:

• Surface hardness: Utilizing UV-cured hard coatings or high-strength polymer films

• Adhesion quality: Ensuring robust bonding between the film and substrate to prevent delamination

• Material selection: Employing polymers with high resistance to wear and chemical interaction

• Layering design: Multi-layer films that combine functional coatings, decorative graphics, and structural support

These factors collectively enhance the panel’s ability to withstand stylus use, cleaning operations, and incidental contact with hard objects.

Product Structure, Performance, Materials, and Manufacturing Processes

Structural Design

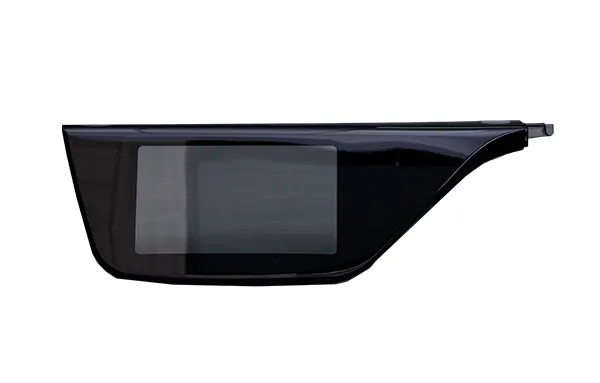

A typical scratch-resistant IMD touch panel comprises:

1. Protective IMD film: Forms the external surface, incorporating hard coatings and decorative elements

2. Substrate: Usually polycarbonate (PC) or PMMA (acrylic) providing structural rigidity and optical clarity

3. Touch-sensing layer: Capacitive or resistive sensors laminated below or within the IMD assembly

4. Bonding interface: Mechanically and chemically integrates the IMD film with the substrate

This design ensures a balance between protection, optical performance, and tactile responsiveness.

Performance Characteristics

Key performance indicators include:

• Surface hardness and scratch resistance, often exceeding 3H–5H on the pencil hardness scale

• Optical clarity, with high transparency (>90%) and low haze for accurate display readability

• Touch sensitivity, maintaining consistent responsiveness across the entire panel

• Environmental durability, tolerating temperature and humidity fluctuations without deformation or delamination

Performance testing includes abrasion tests, drop and impact resistance, chemical exposure, and repeated touch cycling to simulate real-world conditions.

Material Selection

Materials are chosen for both functional and aesthetic properties:

• Polycarbonate (PC): High impact resistance and optical clarity

• PMMA (Acrylic): Excellent transparency and UV resistance

• UV-cured hard coatings: Provide scratch resistance and chemical durability

• Functional multi-layer films: Combine decorative graphics with protective coatings

Material selection is critical for industrial and automotive applications, where both durability and appearance must meet stringent standards.

Manufacturing Processes

The production of IMD touch panels involves:

1. Film preparation: Patterning, coating, and hardening decorative and protective films

2. Injection molding: Embedding the film into the substrate under controlled temperature and pressure

3. Touch sensor integration: Laminating or embedding the sensing layer without affecting performance

4. Finishing and trimming: Ensuring precise dimensions and edge quality

5. Quality inspection: Assessing scratch resistance, optical clarity, adhesion, and touch sensitivity

Advanced manufacturing techniques ensure repeatability, minimizing defects and maintaining high production yields.

Key Factors Affecting Quality and Performance

• Coating uniformity: Variations can lead to weak points susceptible to scratches

• Adhesion strength: Poor bonding increases the risk of delamination under stress

• Substrate stability: Dimensional shifts due to temperature or humidity can impair touch accuracy

• Optical quality: Maintaining clarity and minimal haze is critical for display readability

• Sensor integration precision: Misalignment or uneven lamination can reduce touch sensitivity

Controlling these variables is essential for industrial-grade panel reliability and long-term performance.

Supply Chain and Supplier Selection Considerations

Selecting a reliable supplier is crucial for B2B buyers:

• Experience in IMD and multi-layer film production

• Capability in high-volume injection molding and sensor integration

• Compliance with environmental regulations (RoHS, REACH)

• Process consistency and quality assurance systems

• Flexibility for custom designs and prototypes

Collaborating with suppliers early in the design phase ensures optimal material choices, panel functionality, and manufacturability.

Common Challenges and Industry Pain Points

• Delamination or bubbling due to process inconsistencies

• Surface micro-scratches during handling or finishing

• Balancing surface hardness with flexibility to prevent brittleness

• High tooling and production costs for multi-color or textured designs

• Compatibility with curved or flexible touch panel designs

Overcoming these challenges requires precise engineering, stringent process control, and ongoing material testing.

Application Scenarios and Use Cases

Scratch-resistant IMD touch panels are applied across multiple industries:

• Automotive: Infotainment systems, climate controls, and navigation interfaces

• Industrial machinery: Human-machine interfaces (HMI) in factory automation

• Consumer electronics: Smartphones, tablets, and portable devices

• Medical equipment: Diagnostic devices, monitoring systems, and user interface panels

• Outdoor terminals: Public kiosks, ATMs, and interactive signage exposed to environmental stress

In each scenario, the panels enhance durability, maintain aesthetics, and ensure reliable touch functionality over extended operational periods.

Current Trends and Future Development Directions

• Flexible and curved IMD panels for next-generation device form factors

• Multi-functional coatings, including anti-fingerprint, anti-reflective, and self-cleaning properties

• Eco-friendly materials, leveraging recyclable polymers and low-VOC coatings

• Integration with haptic feedback, enhancing user interaction

• Automated, high-speed production, reducing defects and enabling scalable manufacturing

As the demand for durable, visually appealing, and functional touch panels grows, IMD technology will continue to evolve to meet industrial and consumer expectations.

Frequently Asked Questions

Can IMD panels withstand repeated stylus or finger use?
Yes, when engineered with UV-cured hard coatings and robust bonding, IMD panels maintain scratch resistance under frequent contact.

Are IMD panels suitable for outdoor environments?
Panels using UV-stable coatings and durable polymers retain scratch resistance and optical clarity even under sunlight and varying weather conditions.

How do IMD touch panels differ from traditional overlay panels?
IMD panels integrate decorative and protective layers during molding, forming a monolithic structure that resists delamination and wear better than externally applied overlays.

Conclusion

Scratch-resistant IMD touch panels combine engineering precision, material science, and design flexibility to deliver durable, high-performance touch interfaces. Their integrated protective and decorative layers provide superior scratch resistance, optical clarity, and touch sensitivity across industrial, automotive, and consumer applications. For B2B stakeholders, understanding manufacturing processes, material properties, and quality control parameters is critical to ensure reliable, scalable, and functional touch panel solutions. As touch-sensitive devices continue to expand across markets, IMD technology will set new benchmarks for durability, aesthetics, and usability.
